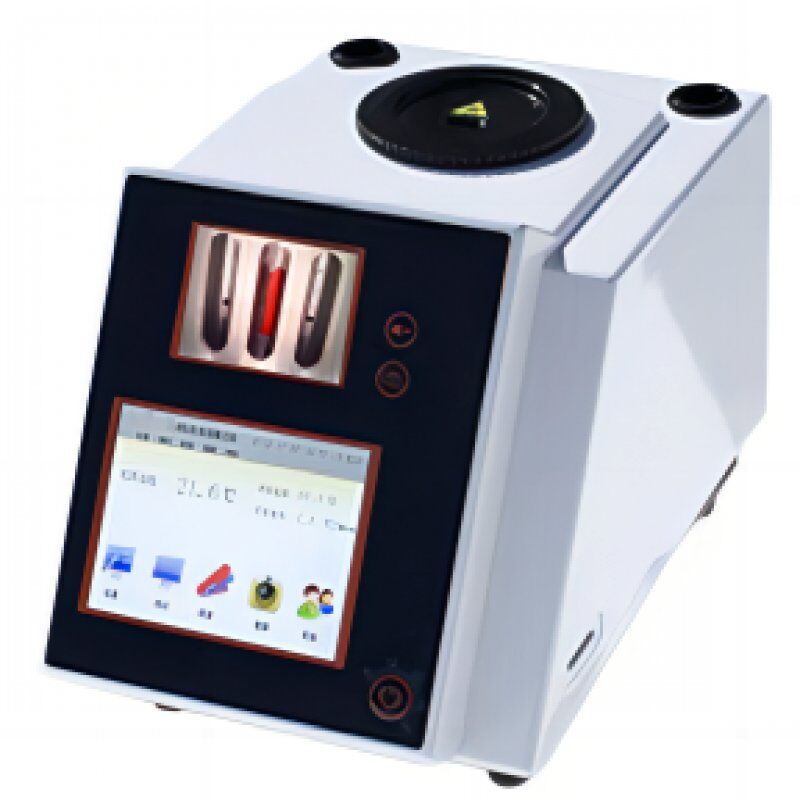

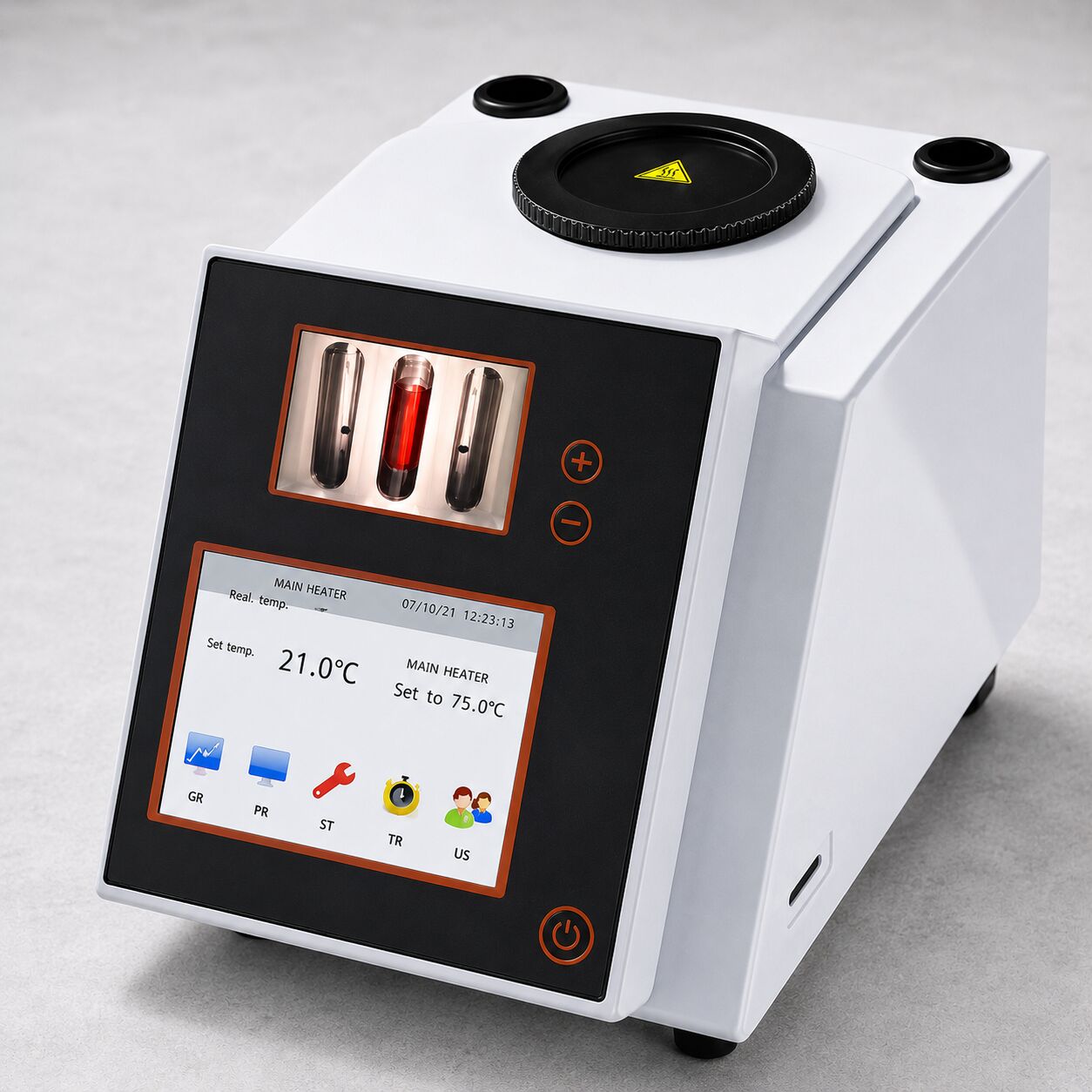

Gress - Yağ Erime Noktası Cihazı
Otomatik gres erime noktası ölçer, erime noktasını hızlı ve doğru bir şekilde belirleyebilir. 3 örnek aynı anda ölçülür. Dijital optik sensör aracılığıyla, tüm deney süreci dijitalleştirilir ve bilgisayara iletilir, akıllı yazılım yağın erime noktasını otomatik olarak değerlendirebilir, erime noktasını değerlendirmenin öznel hatasını ortadan kaldırabilir ve deneycinin emek yoğunluğunu azaltabilir. Cihaz, sabit bir ısıtma hızı sağlayabilen kendi ısıtma sistemine sahiptir. Platin sıcaklık sensörü, geleneksel cıvalı termometre kullanma yöntemine kıyasla hızlı tepki ve yüksek doğruluk avantajlarına sahiptir.
|
Model |
INOY30 |
INOY50 |
INOY80 |
INOY90 |
|
Temperature display range |
0-350℃ |
0-100℃ |
0-400℃ |
0-100℃ |
|
Temperature control range |
RT-350℃ |
(RT -20)-100℃ |
RT-400℃ |
(RT -20)-100℃ |
|
Temperature resolution |
0.1℃ |
0.1℃ |
0.1℃ |
0.1℃ |
|
Heating gradient |
0.1℃-20℃/ minutes |
0.1℃-10℃/ minutes |
0.1℃-20℃/ minutes |
0.1℃-10℃/ minutes |
|
Cooling rate |
Wind cooling |
Semiconductor cooling |
Wind cooling |
Semiconductor cooling |
|
Temperature accuracy |
±0.3℃ (<100℃) ±0.5℃ (>100℃) |
±0.3℃ (<100℃)
|
±0.2℃ (<100℃) ±0.4℃ (>100℃) |
±0.2℃ (<100℃)
|
|
Repeatability |
Melting point repeatability was ±0.1℃ at 0.1℃/Min |
Melting point repeatability was ±0.1℃ at 0.1℃/Min |
Melting point repeatability was ±0.1℃ at 0.1℃/Min |
Melting point repeatability was ±0.1℃ at 0.1℃/Min |
|
Detection method |
Semi-automatic |
Semi-automatic |
Fully automatic (compatible with manual) |
Fully automatic (compatible with manual) |
|
Video function |
Photo |
Photo and video |
Photo and video |
Photo and video |
|
Data preservation |
200 |
400 |
600 |
1000 |
|
Storage |
16G |
32G |
16G |
32G |
|
Display method |
TFT high-definition true color screen |
TFT high-definition true color screen |
TFT high-definition true color screen |
TFT high-definition true color screen |
|
Computer interface |
USB RS232 network port |
USB RS232 network port |
USB RS232 network port |
USB RS232 network port |
|
Capillary can be used |
OD:1.3mm ID:1.1mm Length:100mm (Single and double opening)
OD:4.0mm ID:3.8mm Length:800mm (Large capillary)
|
OD:1.3mm ID:1.1mm Length:100mm (Single and double opening)
OD:4.0mm ID:3.8mm Length:800mm (Large capillary)
|
OD:1.3mm ID:1.1mm Length:100mm (Single and double opening)
OD:4.0mm ID:3.8mm Length:800mm (Large capillary)
|
OD:1.3mm ID:1.1mm Length:100mm (Single and double opening)
OD:4.0mm ID:3.8mm Length:800mm (Large capillary)
|
|
Processing capacity |
3 pcs per batch |
3 pcs per batch |
3 pcs per batch |
3 pcs per batch |
|
Number of user management |
- |
8 |
10 |
200 |
|
Video playback |
- |
YES |
YES |
YES |
|
User Management |
- |
YES |
YES |
YES |
|
Power supply |
AC 220V 50/60Hz 120W |
AC 220V 50/60Hz 120W |
AC 220V 50/60Hz 120W |
AC 220V 50/60Hz 120W |
|
Instrument size |
400*280*330mm |
400*280*330mm |
400*280*330mm |
400*280*330mm |
|
weight |
4.1kg |
4.1kg |
4.1kg |
4.1kg |
