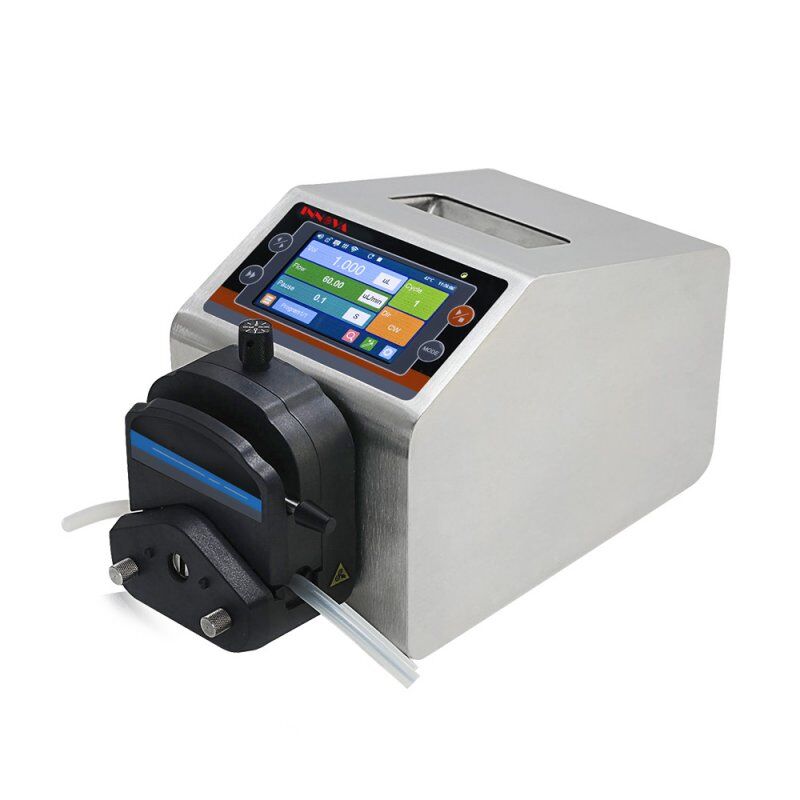

Innovabiomed BT600F Akıllı Peristaltik Pompa
BT600F dağıtım akıllı peristaltik pompa, düşük aralıktan seçim yapabileceğiniz çoklu dağıtım modlarına sahiptir: 0.006 ~ 2900ml / dak Akıllı sıcaklık kontrol teknolojisi kullanan ana RS485 iletişimi, Modbus protokolü ile uyumludur, bilgisayar, insan-makine arayüzü, PLC vb. gibi diğer kontrol ekipmanlarıyla iletişim kurmak daha kolaydır.
Main Features:
-
4.3 inch color LCD display, intuitive image.
-
Touch screen with the key operation, convenient and fast
-
LF-Touch-OS software system, is efficient and stable, with good human-computer interaction mode, convenient product customization, and upgrades.
-
Working modes: flow rate, time dispensing, volume dispensing, programming dispensing(cycle).
-
Five sets of dispensing parameters for volume and time dispensing pre-storage.
-
The programming mode supports 30 different quantitative parameter settings for complex control processes.
-
Start/stop, reversible direction, full speed, suction function, timed start-stop.
-
Accurate flow control and display, micro-step algorithm to ensure the dispensing accuracy of different settings.
-
The wizard flow calibration function is easy to use.
-
Unique back suction function to prevent liquid drips.
-
Support for serial print parameters and data.
-
The intelligent temperature control function, automatically adjusts the heat according to the environment, so that the device is always in the best state.
-
WIFI control function and remote operation can be realized through the Lead Fluid APP
-
Software, and has monitoring functions such as shutdown alarm and reminding to replace the pump tube.
-
External analog adjust speed, external control start-stop, reversible direction, dispensing, external signal physical isolation.
-
RS485 communication interface, MODBUS protocol is available, can set up communication parameters, convenient to connect various of control equipment.
-
The circuit board is sprayed with three anti-paint technology to achieve the effect of dustproof and moisture-proof.
-
Super anti-interference feature, wide input voltage range, acceptable for the complex power environment
-
Innovative stainless steel housing, easy to clean, effectively prevents the erosion of various organic solvents.
Model
ParametersBT100F BT300F BT600F Flow range 0.0001 -720 ml/min 0.006 〜1690 ml/min 0.006-2900 ml/min Speed range 0.1-150 rpm 0.1 ~ 350 rpm 0.1-600 rpm Speed resolution 0.1 rpm Dispensing volume 0.05ml-99991 Dispensing time 1 ~999, "0" Infinite cycle Dispensing interval time 0.1 ~ 999.9 S/Min/H, time unit adjustable Speed accuracy <±0.2% Power supply AC100~240V, 50HZ/60HZ Power consumption <40W <50W <60W External control external control input level 5V-24V external control analog 0-5V; 0-1OV 4-20mA can set Communication interface RS485 communication interface, Modbus protocol is available Working environment Temperature 0 ~ 40°C, relative humidity < 80% IP grade IP31 Dimension (LxWxH) 269x160x183mm Weight 4.8kg 5.3kg 5.5kg Filling Application Reference Table :
The above flow parameters are obtained by using a silicone tube to transfer pure water under normal temperature and pressure, actually using it is affected by specific factors such as pressure, medium, etc. Above for reference only.
Filling fluid volume Pump head Tube Speed (rpm) Filling time (S) Reliablility error (%) 50pl DG6-1 0.25x0.89mm >90 <6.66 <±2 0.1ml DG6-1 0.5x0.92mm >90 <3.33 <±2 0.2ml DG6-1 0.5x0.92mm >90 <6.06 <±1 0.3ml YZ15 13# >500 <0.6 <±2 0.5ml YZ15 13# >500 <1 <±1 0.8ml YZ15 13# >500 <1.6 <±1 lm[ YZ15 13# >500 <2 <±1 2ml YZ15 14# >500 <1.1 <±1 3ml YZ15 14# >500 <1.65 <±1 5ml YZ15 19# >500 <1.68 <±1 8ml YZ15 16# >500 <1.2 <±1 10ml YZ15 16# >500 <1.5 <±1 20ml YZ15 25# >500 <1.43 <±1 50ml YZ15 17# >500 <2.11 <±1 Drive Type Pump Head Channel Tube Single Channel Flow Rate
ml/minBT100F DG (6 rollers) 1,2,4 wall thickness 0.8 ~ 1 mm
ID<3.17mm0.0002 ~ 49 DG (10 rollers) 1,2,4 wall thickness 0.8 ~ 1 mm
ID<3.17mm0.0001 ~41 DTI0-18 1 13#14#? wall thickness 0.8 ~ 1 mm
ID<3.17mm0.0002 ~ 82 DTI0-28 2 13#14#, wall thickness 0.8 ~ 1 mm
ID<3.17mm0.0002-82 DTI0-48 4 13#14#z wall thickness 0.8 ~ 1 mm
ID<3.17mm0.0002 〜82 YZ15 1,2 13#14#19#16#25#17# 0.006 ~ 420 YZ25 1,2 15#24# 0.1 6 ~ 420 YT15 1,2 13#14#19#16#25#17#18# 0.006 ~ 570 YT25 1,2 15#24#35#36# 0.17 ~ 720 DTI5-14 1 19#16#25#17# 0.07-560 DTI5-24 2 19#16#25#17# 0.07-560 DTI5-44 4 19#16#25# 0.07-330 BT300F YZ15 1,2 13#14#19#16#25#17# 0.006 〜990 YZ25 1,2 15#24# 0.16 ~ 990 DTI5-14 1 19#16#25#17# 0.07-1300 DTI5-24 2 19#16#25#17# 0.07-1300 DTI 5-44 4 19#16#25# 0.07-770 YT15 1,2 13#14#19#16#25#17#18# 0.006-1300 YT25 1 15#24#35#36# 0.16-1690 BT600F YZ15 1,2 13#14#19#16#25#17# 0.006-1700 YZ25 1,2 15#24# 0.16-1700 YT15 1.2 13#14#19#16#25#17#18# 0.006-2300 YT25 1 15#24#35#36# 0.16-2900
